Class A AIS System with 7″ Display, GPS and Antennas – IMO Package TRON TR-8000 MkII
Share this product
The TRON TR-8000 MkII is a certified Class A AIS system for commercial and maritime vessels requiring full IMO compliance. This complete package includes a 7” touchscreen display, transponder, GPS antenna, VHF antenna, and pilot cable, ensuring high-performance navigation data exchange and reliable maritime tracking in both national and international waters.
EUROSUL Code:
090862
Features:
Display: 7” high-brightness color touchscreen (glove-operable)
Transponder: Reliable Class A AIS communication

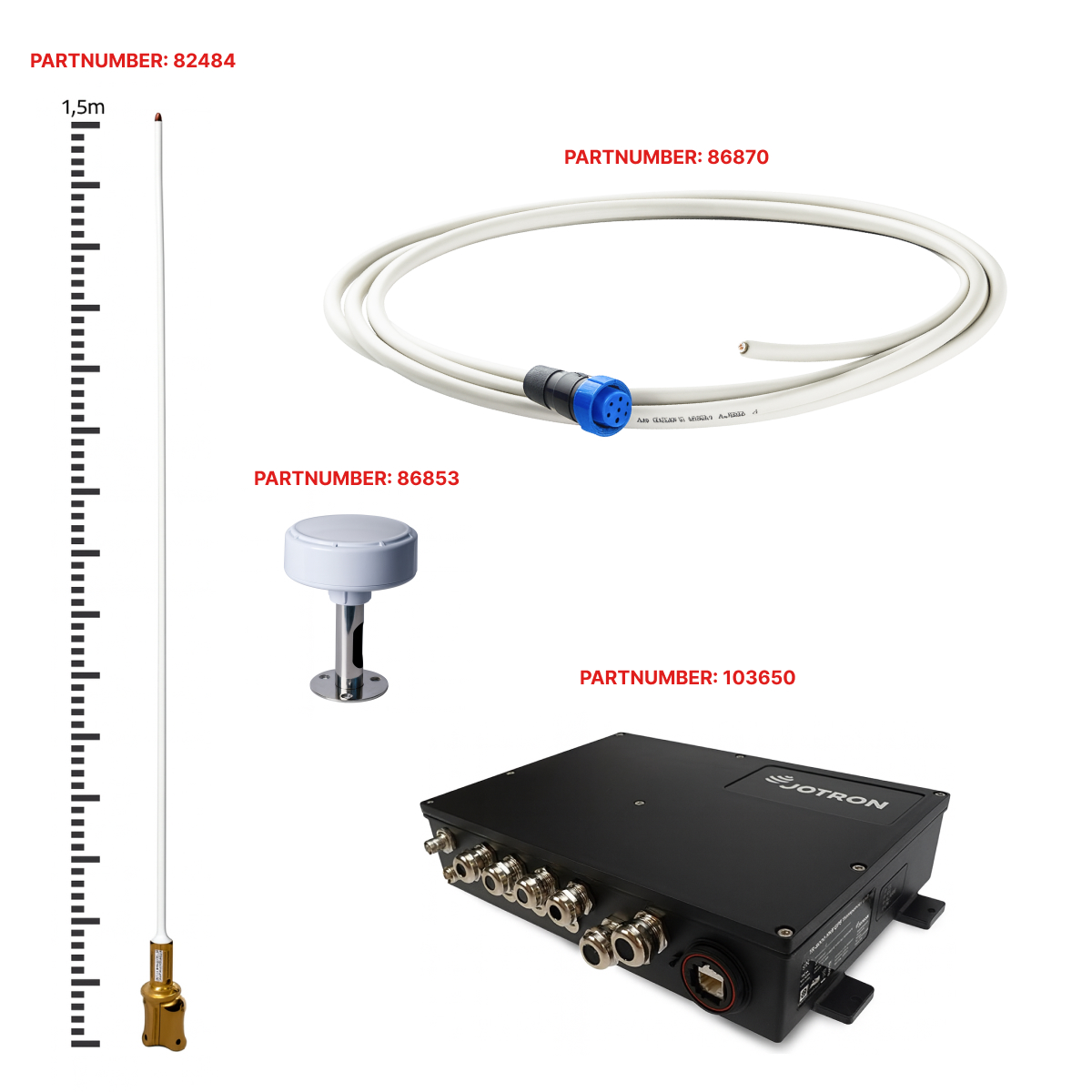

Antennas: GPS SANAV SA-200 | VHF PROCOM CXL 2-1LW/H (0 dBd gain)
Installation: Modular design, suitable for retrofit or new builds
Cables: Includes pilot cable for display connection
Connectivity: IEC61162-1/2, NMEA 0183 interfaces, compatible with navigation systems
Applications: Commercial and cargo vessels, offshore platforms, support ships, retrofit of outdated AIS systems, international navigation, and Inland Waterways compliance.
Benefits:
Compliance: Certified under IMO, SOLAS, MED, and Inland Waterway regulations
Safety: Automatic communication with vessels and authorities
Practicality: Modular setup and intuitive touchscreen operation
Durability: Rugged equipment for harsh marine environments
Integration: Seamless with onboard navigation via NMEA/IEC
Technical Specifications:
Display: 7” high-brightness color touchscreen
Power supply: 12–24 VDC
Interfaces: NMEA 0183, IEC61162-1/2, BAM alarms
Installation: Modular (Display + Transponder + Antennas)
System weight: ~5 kg
Certifications: IMO/SOLAS, MED, IEC 61993-2:2018, IEC 62288:2021, IEC 62923-1/2, FCC, MER, ANATEL, UKCA, CCS
