Valves Straight Globe Norma Jis 10k and Din PN 16
Share this product
Globe valves straight with flange according to JIS 10K and DIN PN 16, developed in high resistance corrosion brass, ensuring excellent performance in maritime and offshore environments. Designed for use in fixed fire fighting systems, these valves have male BSP connection compatible with various types of adapters such as Storz, Nakajima and Machino. Available in the DN40, DN50 and DN65 nominal diameters, with 16 bar nominal operating pressure (PN16), they are ideal for critical applications where reliability and international compatibility are essential. We have no hole flange options so that the user can pierce in the dimension that suits him.
EUROSUL Code:
004382
Features
Material: Corrosion-resistant brass
Fasteners: BSP male connection, JIS 10K standard flange, and DIN PN 16
Design: Straight body, with or without drilled flange
Applications
Fixed fire-fighting systems: On ships
Pressurized networks: Offshore platforms
Connections: For hoses and international adapters
Benefits
Readiness: Quick and secure coupling with global standards
Durability: Brass construction resistant to marine corrosion
Safety: JIS 10K and DIN PN 16 compliance ensures standardization and reliability
An ideal solution for fire-fighting systems that require high performance and compliance with international maritime safety standards.
Technical Specifications
Material: Brass
Fasteners: BSP male connection, JIS 10K flange, DIN PN 16, undrilled flanges available

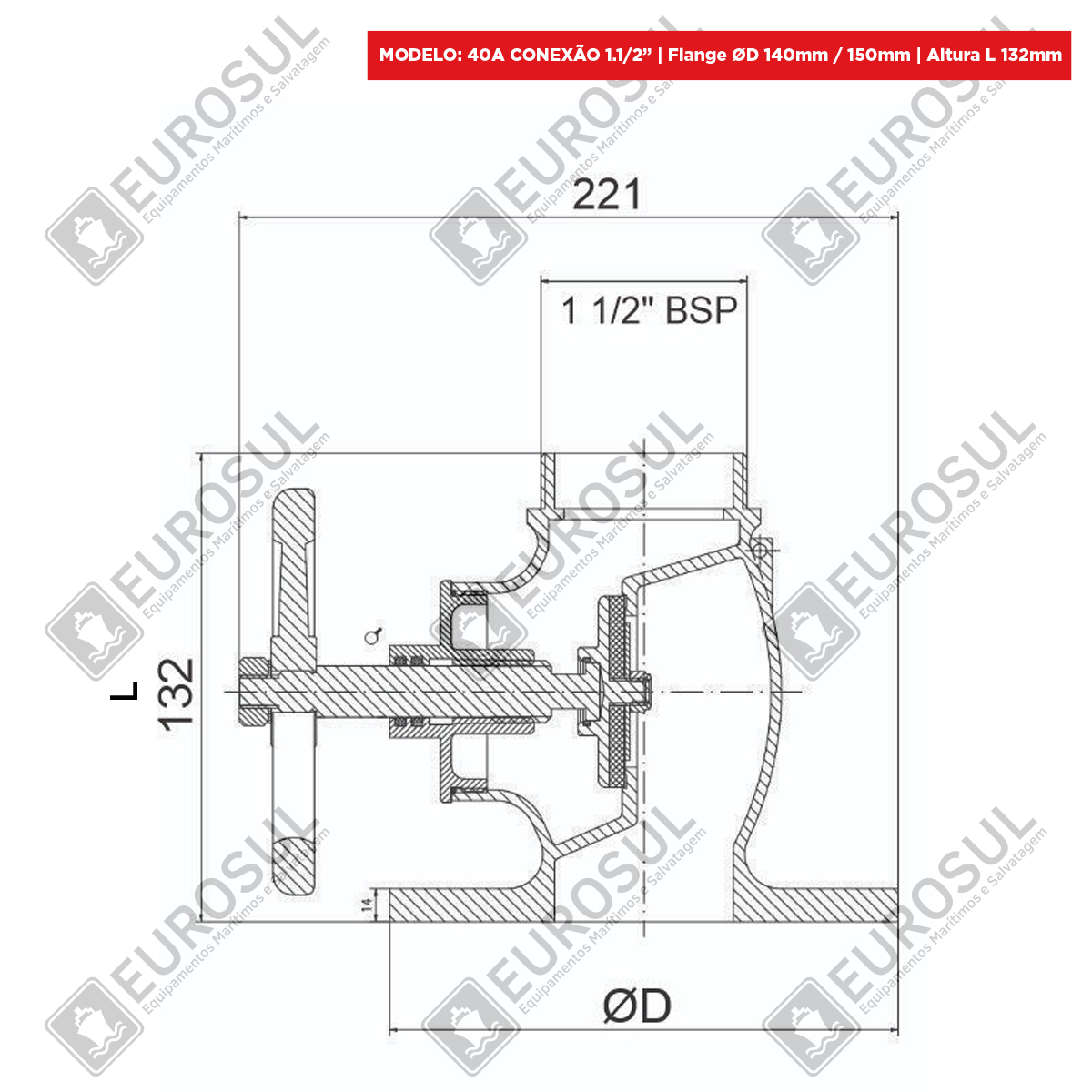

MODEL: 40A CONNECTION 1.1/2” | Flange ØD 140mm / 150mm | Height L 132mm

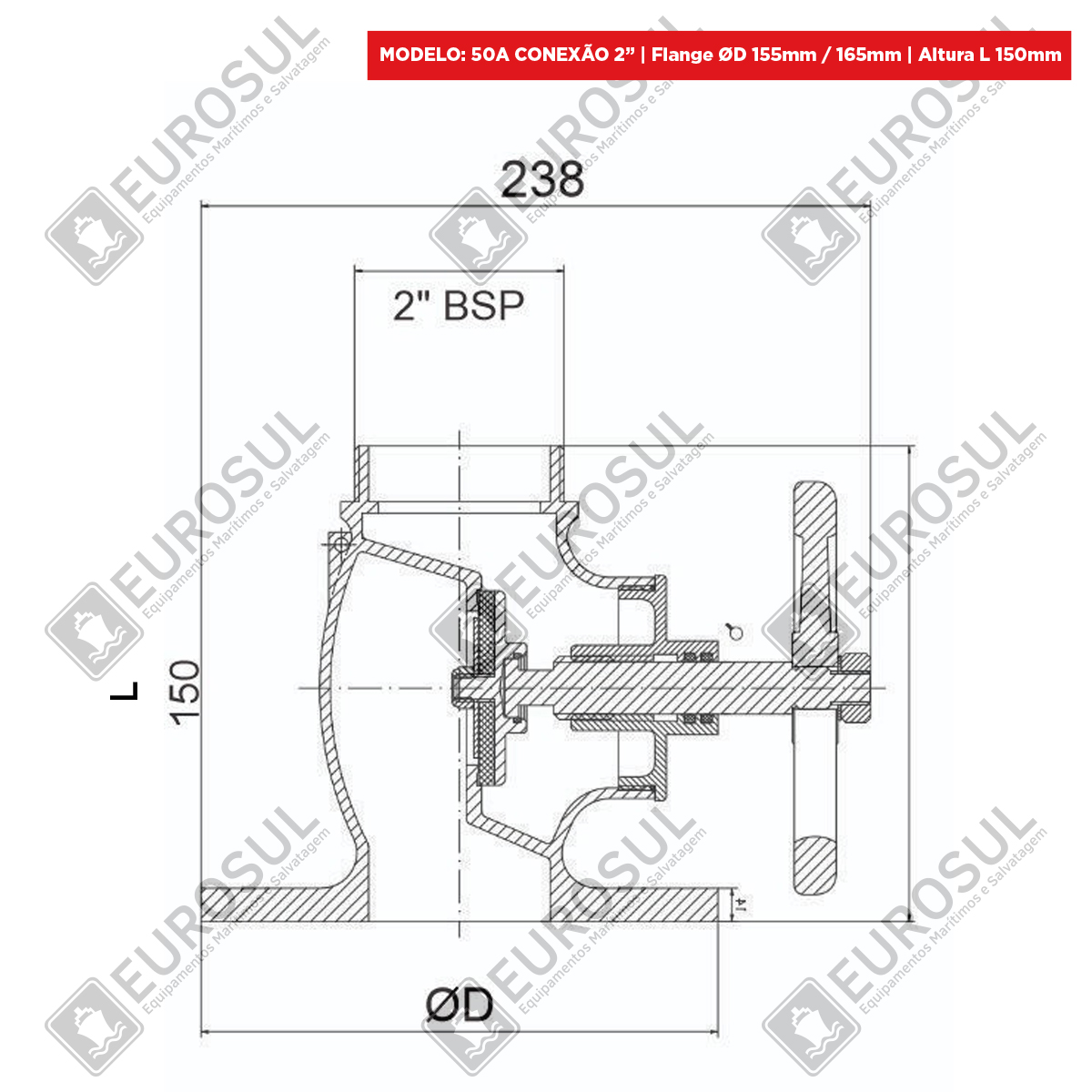

MODEL: 50A CONNECTION 2” | Flange ØD 155mm / 165mm | Height L 150mm

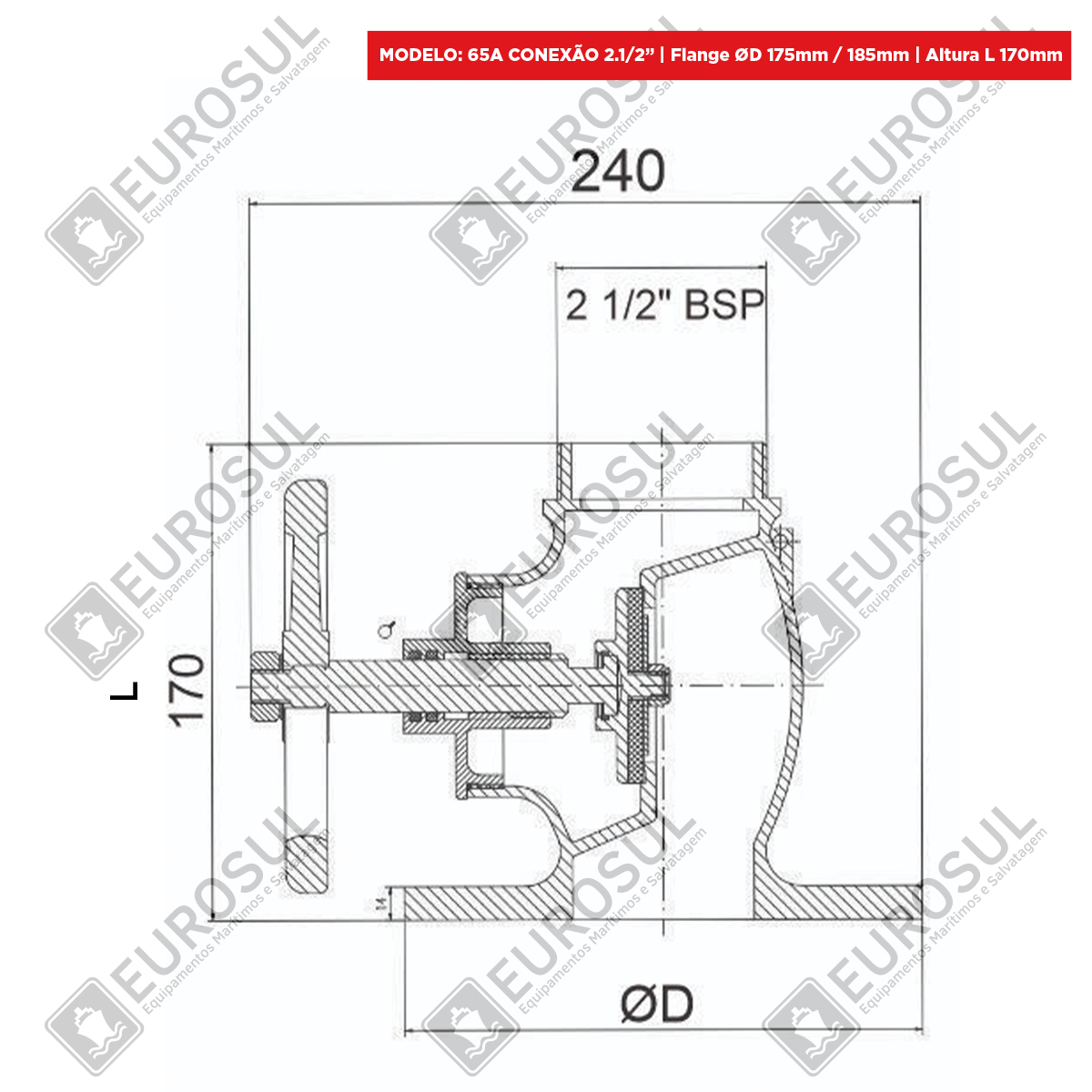

MODEL: 65A CONNECTION 2.1/2” | Flange ØD 175mm / 185mm | Height L 170mm
| Eurosul Code | Standard | Model | Connection | ØD | L | IMPA |
|---|---|---|---|---|---|---|
| 004382 | JIS 10K | 40A | 1.1/2” | 140MM | 132MM | 751712 |
| 005196 | JIS 10K | 40A | 1.1/2” | 140MM | 132MM | 751712 |
| 005195 | DIN PN 16 | 40A | 1.1/2” | 150MM | 132MM | 756043 |
| 005192 | JIS 10K | 50A | 2” | 155MM | 150MM | 751717 |
| 001097 | DIN PN 16 | 50A | 2” | 165MM | 150MM | 756044 |
| 005191 | DIN PN 16 | 50A | 2” | 165MM | 150MM | 756044 |
| 001215 | JIS 10K | 65A | 2.1/2” | 175MM | 170MM | 751718 |
| 005188 | JIS 10K | 65A | 2.1/2” | 175MM | 170MM | 751718 |
| 005094 | DIN PN 16 | 65A | 2.1/2” | 185MM | 170MM | 751718 |
| 005187 | DIN PN 16 | 65A | 2.1/2” | 185MM | 170MM | 751718 |
