Angular Globe Valves
Share this product
Angle Globe Valves with JIS 10K flanges and DIN PN 16, manufactured in corrosion-resistant brass, ideal for fixed firefighting systems in ships and offshore installations. Featuring male BSP threaded connections, they are compatible with international couplings such as Storz, Nakajima, and Machino. Available in DN40, DN50, and DN65 sizes with a nominal pressure rating of 16 bar (PN16), these valves deliver reliable performance in demanding environments.
EUROSUL Code:
005196
Features
Material: High-durability naval brass
Fasteners: Flange with and without holes (undrilled), BSP male connection
Design: Available in straight and angular versions
Applications
Valve stock: For multiple standards
Hydraulic systems: On ships, offshore platforms, and in industries
Retrofit and maintenance projects: With local adaptation
Benefits
Readiness: Immediate adaptation to different standards at the installation site
Durability: Brass body resistant to marine corrosion
Safety: Guaranteed sealing even after drilling and adaptation
The ideal choice for projects requiring flexibility, standardization, and inventory optimization without compromising compliance with international technical standards.
Technical Specifications
Material: Naval brass
Fasteners: JIS 10K flanges, DIN PN 16 flanges, undrilled flanges
Dimensions:

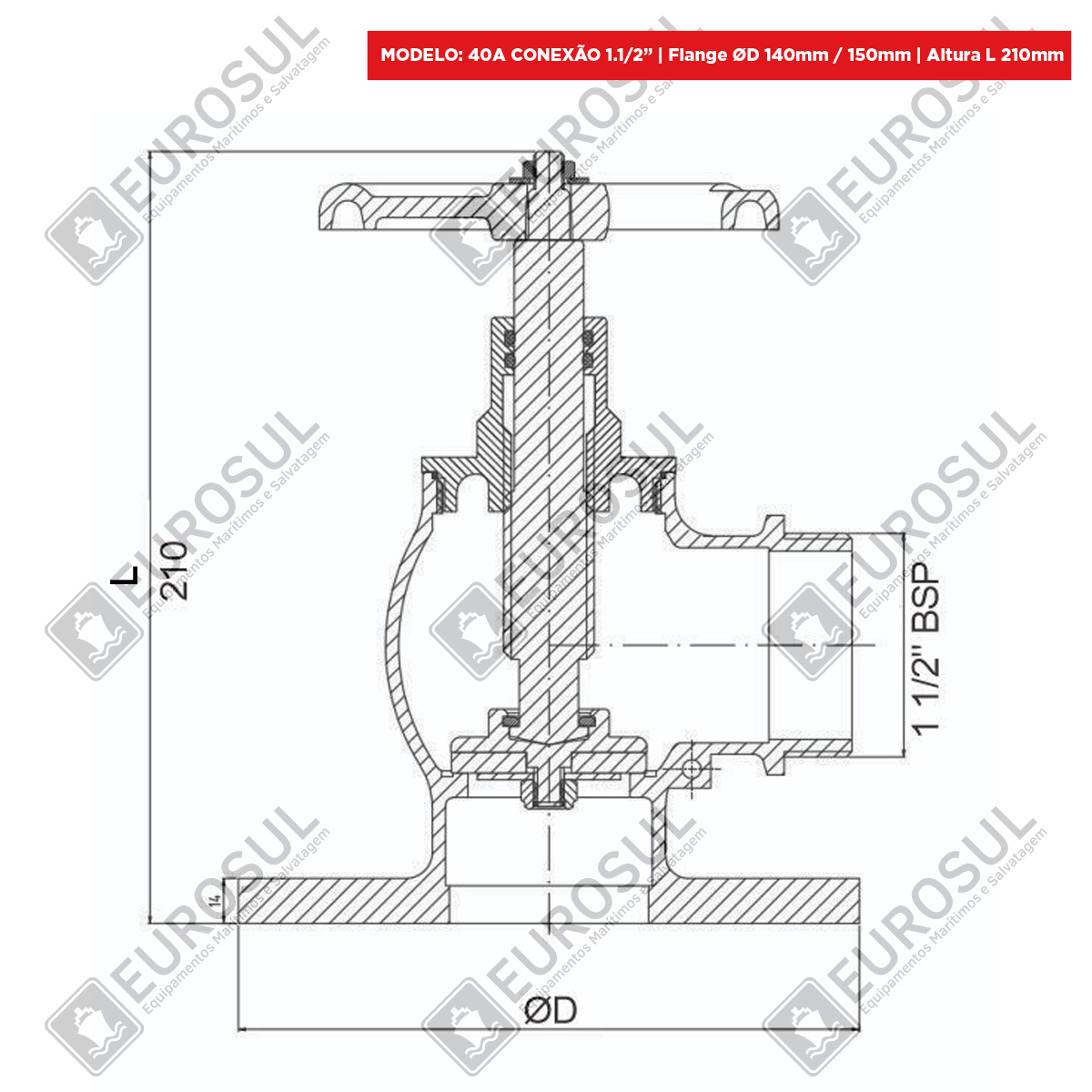

MODEL: 40A CONNECTION 1.1/2” | Flange ØD 140 mm / 150 mm | Height L 210 mm

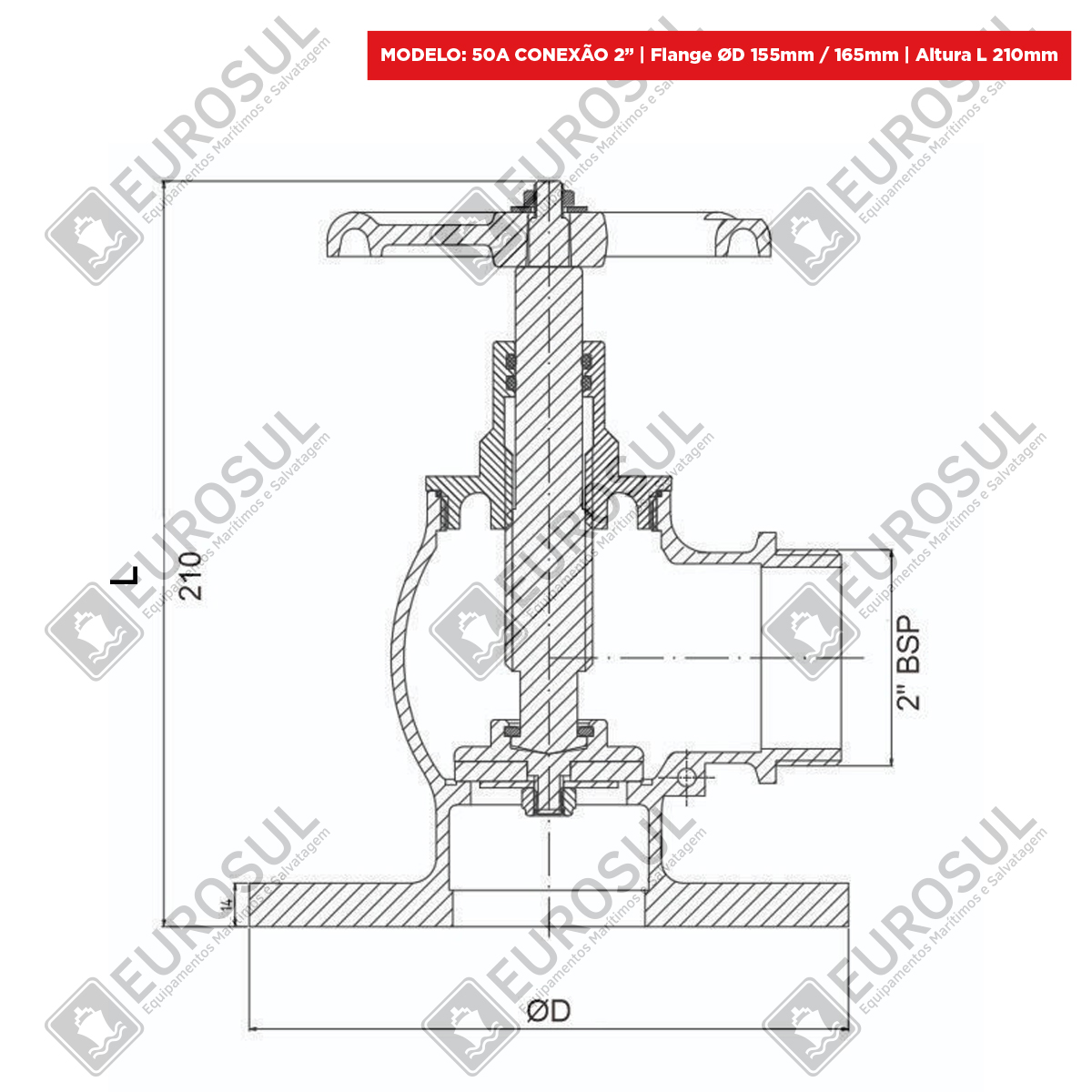

MODEL: 50A CONNECTION 2” | Flange ØD 155 mm / 165 mm | Height L 210 mm

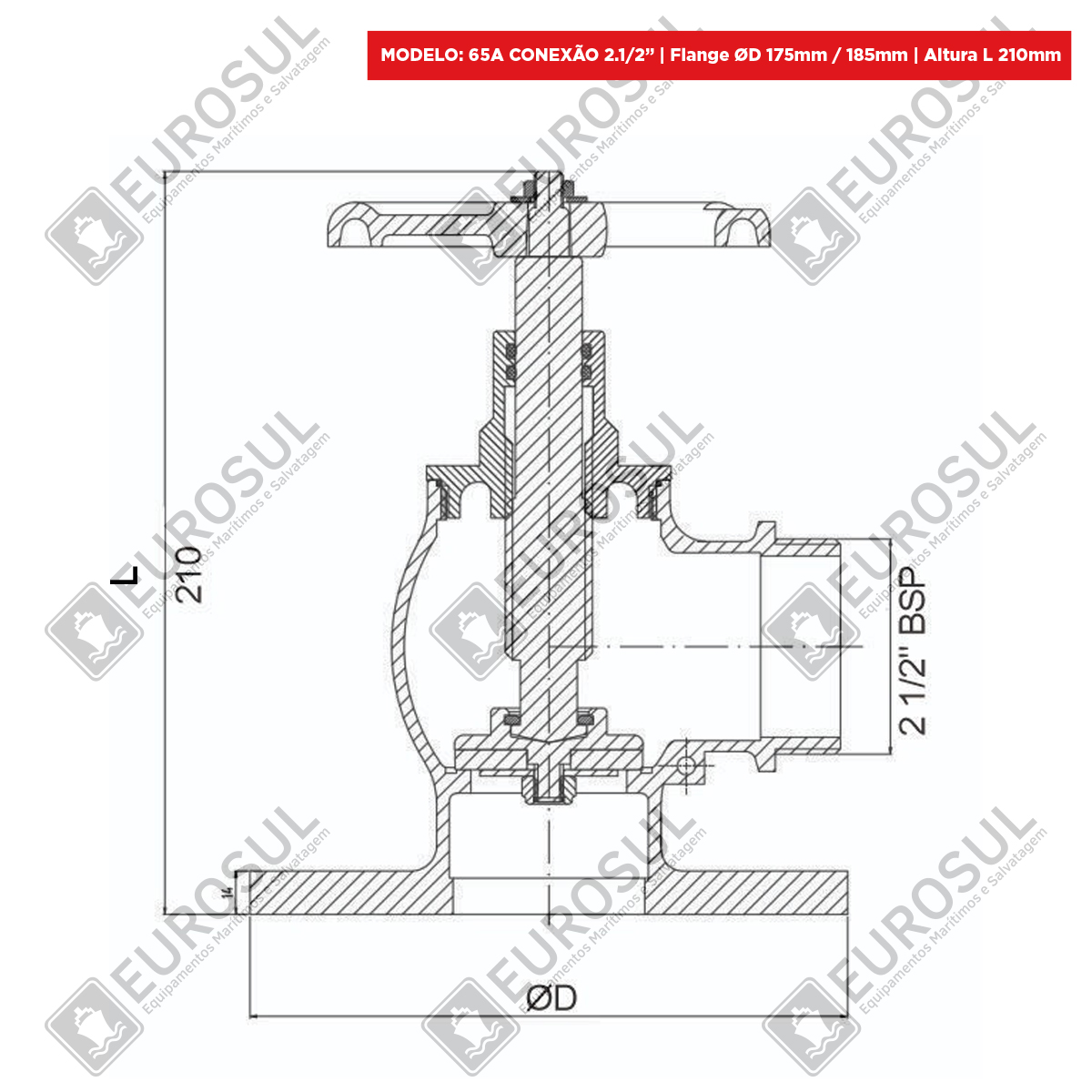

MODEL: 65A CONNECTION 2.1/2” | Flange ØD 175 mm / 185 mm | Height L 210 mm
| Eurosul Code | Standard | Model | Connection | ØD | L | IMPA |
|---|---|---|---|---|---|---|
| 004948 | DIN PN 16 | 40A | 1.1/2” | 150MM | 210MM | 756055 |
| 005197 | DIN PN 16 | 40A | 1.1/2” | 150MM | 210MM | 756055 |
| 003691 | JIS 10K | 40A | 1.1/2” | 140MM | 210MM | 751714 |
| 005198 | JIS 10K | 40A | 1.1/2” | 140MM | 210MM | 751714 |
| 003941 | DIN PN 16 | 50A | 2” | 165MM | 210MM | 756056 |
| 005200 | JIS 10K | 50A | 2” | 155MM | 210MM | 751722 |
| 005194 | JIS 10K | 50A | 2” | 155MM | 210MM | 751722 |
| 001224 | JIS 10K | 65A | 2.1/2” | 175MM | 210MM | 751723 |
| 005190 | JIS 10K | 65A | 2.1/2” | 175MM | 210MM | 751723 |
| 005189 | DIN PN 16 | 65A | 2.1/2” | 185MM | 210MM | 756057 |
Documents and certifications
Access the user manual, certificates, and complete product documentation.
Data Sheet
