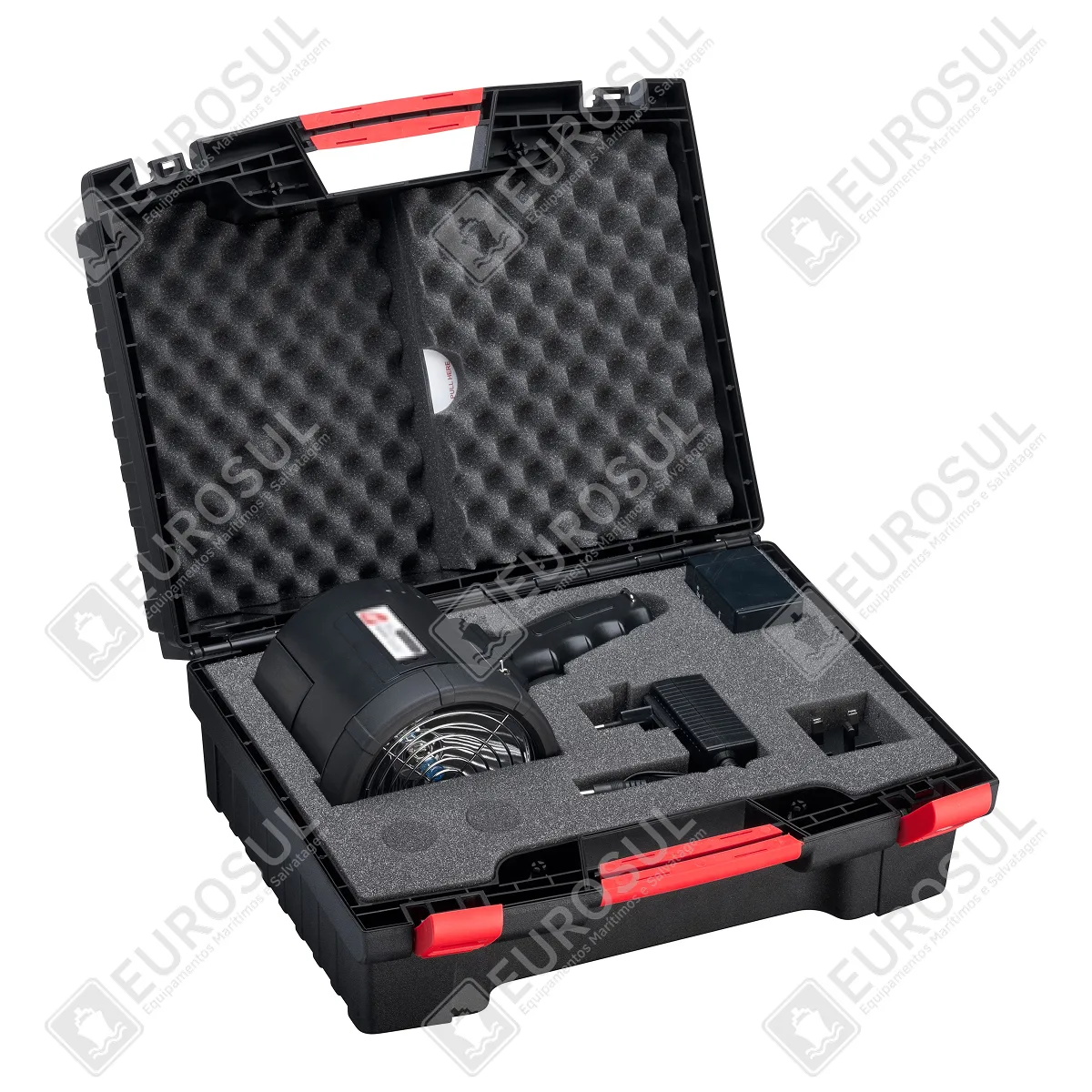

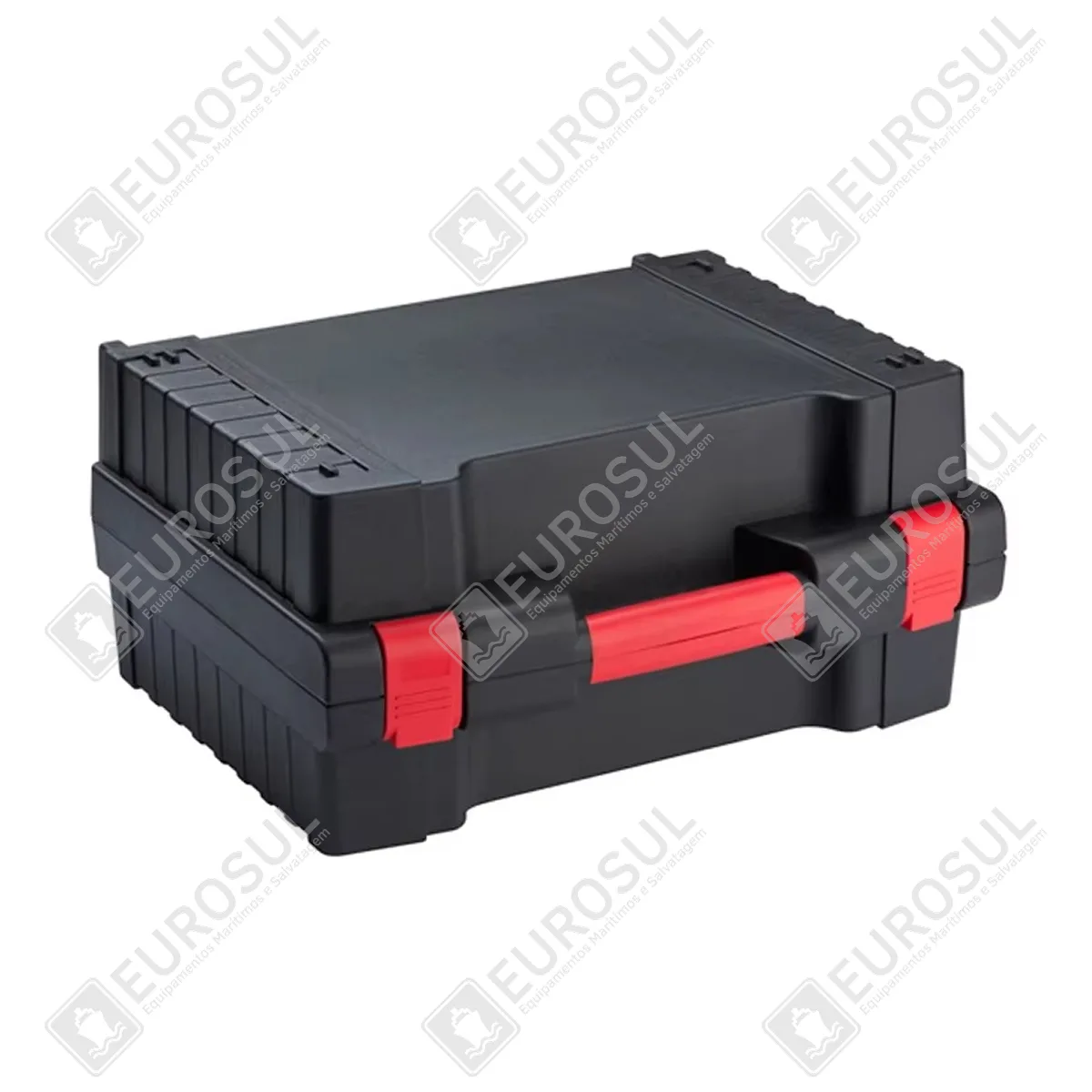

Infrared flame detector tester kit with carrying case
Share this product

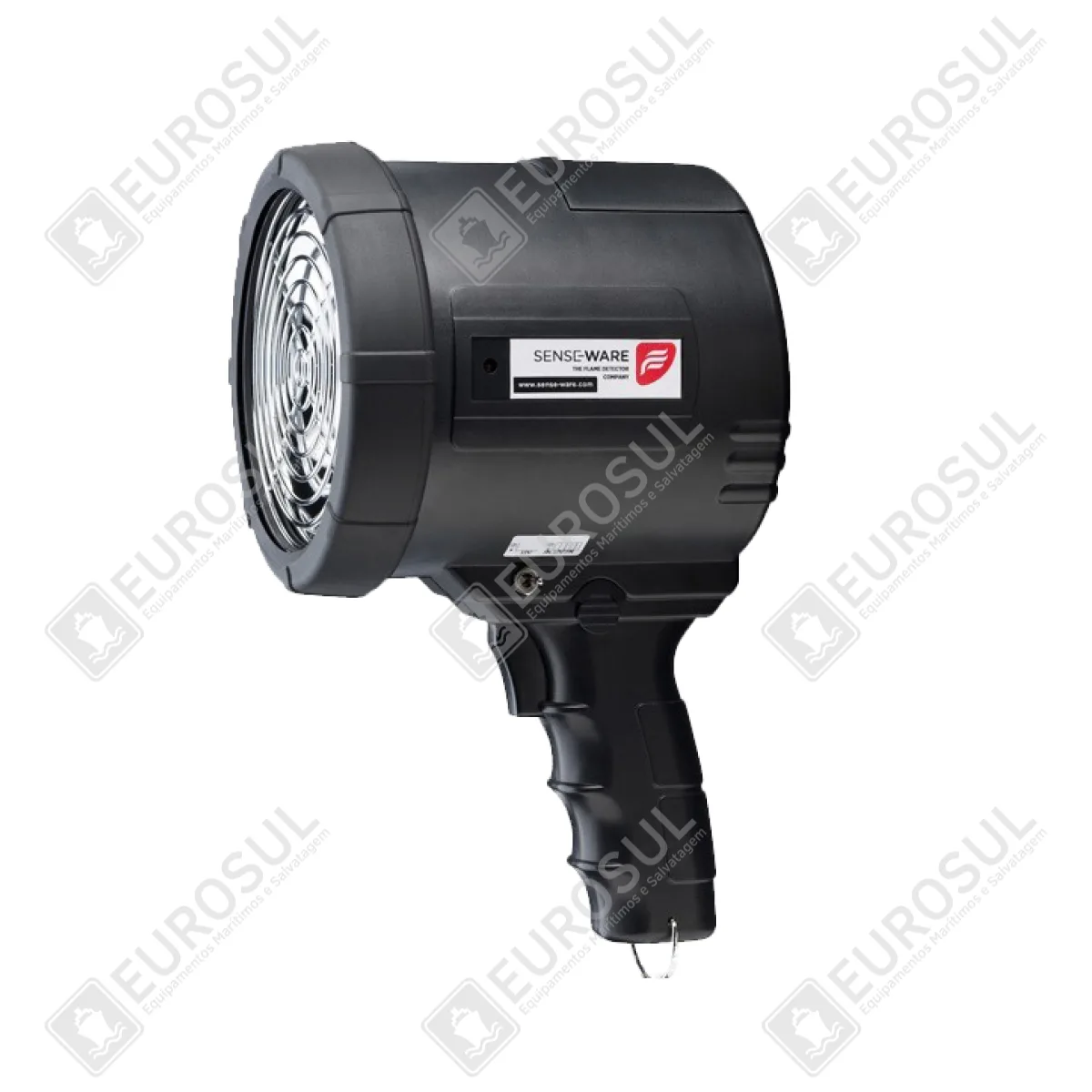

Infrared flame detector tester kit with carrying case. Equipped with an H3 12VDC/100W lamp and a rechargeable 12VDC/2.8Ah sealed lead-acid battery. Test range up to 8m in continuous mode for UV detectors and up to 4m for IR and UV/IR detectors. Includes a universal switching adapter (100–240VAC) with plugs for US, EU, GB and AU. ABS black housing with IP30/NEMA 1 ingress protection.
IMPA Code:
330910
Part Number:
TC-229/4P
Category:
Fire fighting
Specification
UV test range (continuous mode): up to 8 m (26 ft) UV test range
(pulse mode): up to 4 m (13 ft)
IR and UV/IR test range: up to 4 m (13 ft) Battery: 12VDC / 2.8Ah – sealed lead-acid, rechargeable Lamp: H3, 12VDC / 100W
Operating time: 10–15 min continuous use under optimal conditions Adapter: 100–240VAC, 500mA Plugs included: US, EU, GB and AU
Housing: ABS black
Ingress protection: IP30 / NEMA 1
Operating temperature: +4°C to +40°C (+39°F to +104°F)
Shipping dimensions (kit): 310 x 220 x 210 mm
Shipping dimensions (with case): 440 x 340 x 280 mm
Shipping weight (with case): 5.0 kg (11.1 lbs) Country of origin: European Union
