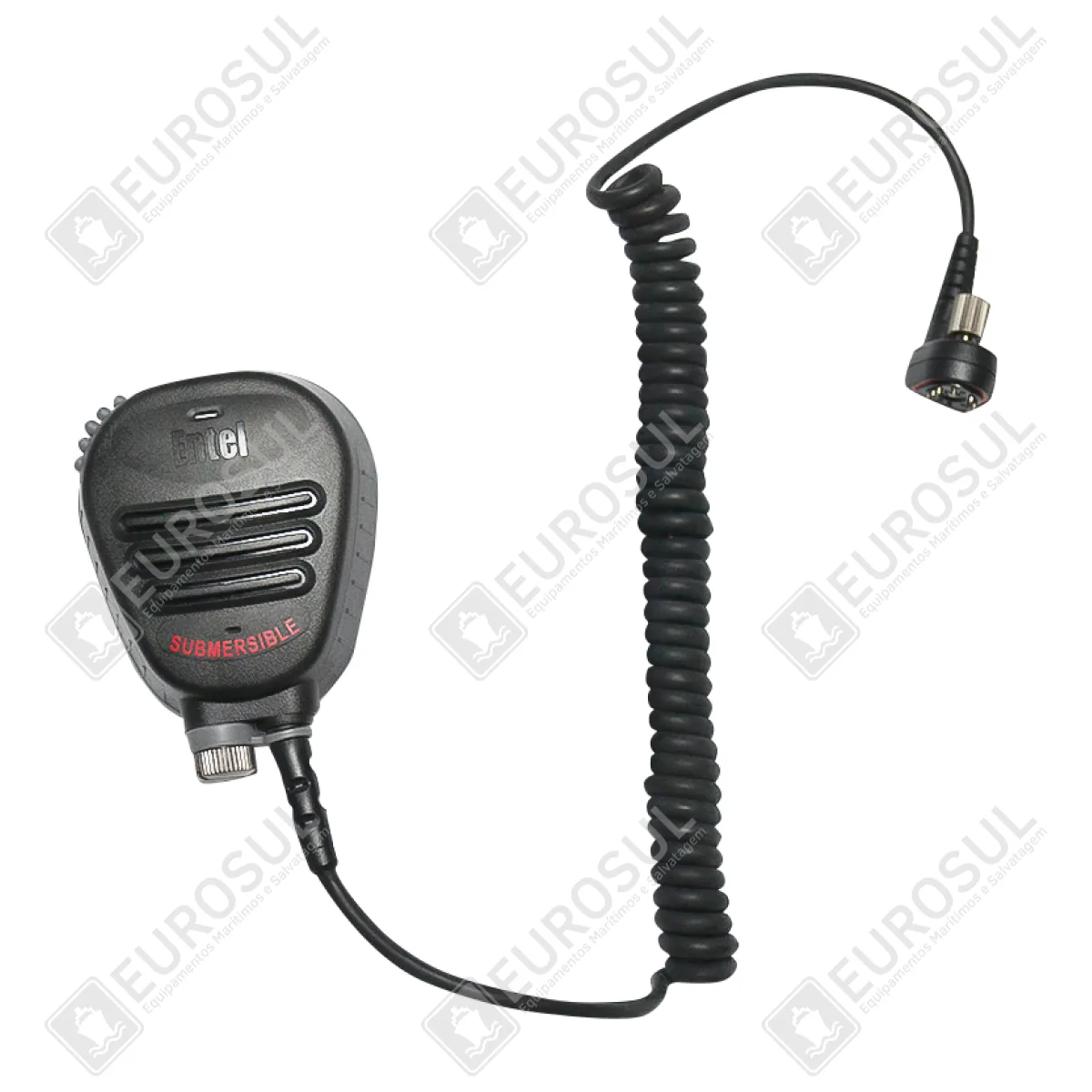

PTT Speaker Microphone IP67 Entel UK
The Entel UK CMP950 PTT speaker microphone is designed for reliable communication in demanding environments where water exposure is a concern. Submersible and IP67 rated, it supports compatible HT800 and HT900 series radios with the durability expected for professional use on board or in the field.
Contact a specialist.
Specifications
Overview
The CMP950 is a submersible remote PTT speaker microphone from the CMP series, intended for compatible Entel radios. It is a practical solution for clear, immediate communication, with a design suited to professional use in wet or water-exposed conditions.
Application and use
Used with HT800 and HT900 radios, including the compatibility indicated for HT883 IIA, the CMP950 is suitable for onboard operations, technical areas and tasks where the operator needs the radio protected and communication close at hand.
Construction characteristics
| Sub-item | PTT |
| Model | CMP950 |
| Microphone element | Electret condenser |
| Submersible | Yes |
Technical specifications
| IP protection rating | IP67 |
| Submersion | 1 metre for 30 minutes |
| Impedance (ohms) | 8 |
| Rated input (mW) | 500 |
| Maximum input (W) | 1 |
| Dimensions (mm) | 75 x 60 x 35 |
| Weight (g) | 154 |
Compliance and certification
| ATEX | Sira 10ATEX2066X |
Marking and traceability
| SKU | 004102 |
| Brand | ENTEL UK |
For best performance, keep the connector and housing clean and dry after use, especially in salty or humid environments. Store the accessory in a protected place when not in service and follow the compatible radio’s installation and maintenance instructions.
Frequently Asked Questions (FAQ)
Yes. The CMP950 has an IP67 protection rating and supports immersion up to 1 metre for 30 minutes. This makes it suitable for wet environments or where water exposure is expected.
It is intended for Entel HT800 and HT900 radios, with compatibility also indicated for HT883 IIA. Before purchasing, confirm the exact radio model to ensure proper fit.
The product has ATEX certification, reference Sira 10ATEX2066X. This approval is relevant for applications in explosive atmospheres, according to the equipment design.
The CMP950 has 8 ohms impedance, 500 mW rated input and 1 W maximum input. Its dimensions are 75 x 60 x 35 mm and its weight is 154 g.
After use, it is recommended to clean and dry the connector and housing, especially in salty or humid environments. Store the accessory in a protected place and follow the compatible radio’s installation and care instructions.
