Stainless Steel Bow Shackle AISI 316 – 12.7 mm (1/2 in), 4 Parts – HL0110

Stainless Steel Bow Shackle AISI 316 – 12.7 mm (1/2 in), 4 Parts – HL0110

Eurosul Code: 096475

Part Number: HL0110

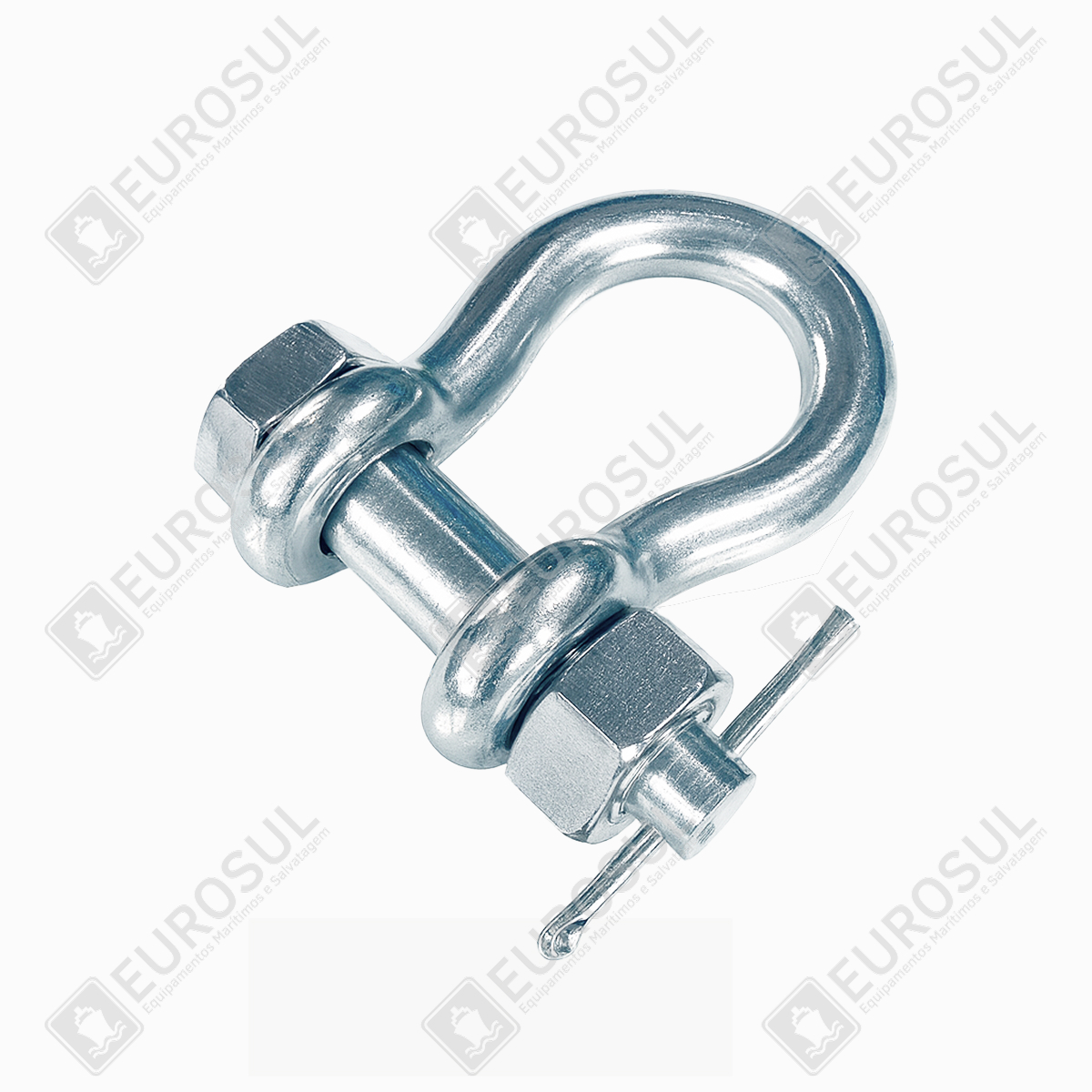

The HL0110 stainless steel bow shackle (AISI 316) is designed for heavy-duty marine and industrial applications. Built with 4 components (body, pin, nut, and cotter pin), it ensures maximum safety and durability under harsh environments. Its oversized anchor shackle design allows secure connections to chains, ropes, and rigging systems, making it reliable for offshore and nautical use.

Industrial Quote Request

include in quote

Fast international shipping for marine fleet supplies.
Contact a specialist.

Specifications

Features:
Material: Stainless Steel AISI 316 (marine-grade, corrosion resistant)
Type: Oversize Bow Anchor Shackle
Components: 4 parts (body, pin, nut, and cotter pin)

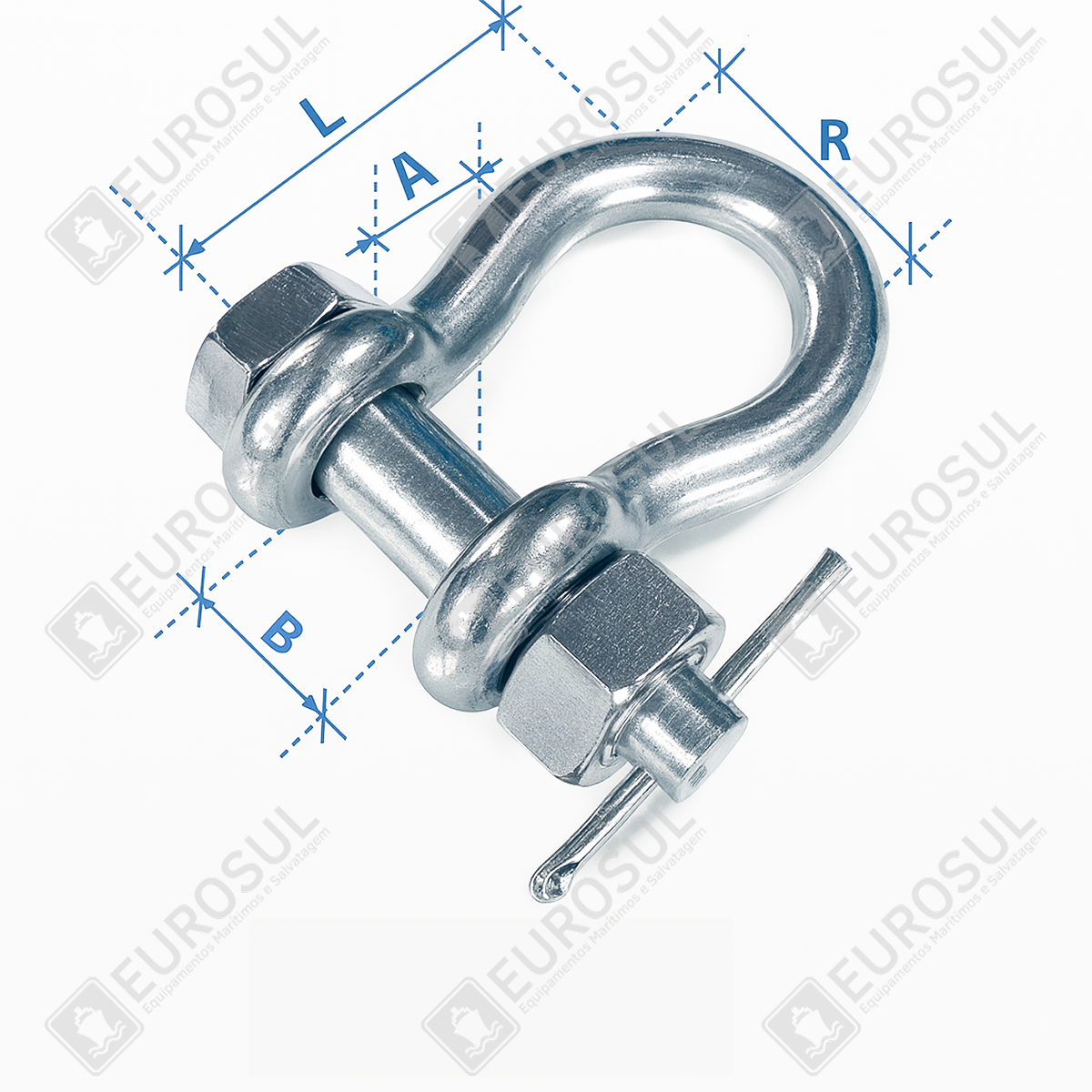

Diameter (A): 12.7 mm (1/2″)
Internal Width (B): 20.60 mm
Inner Radius (R): 33 mm
Total Length (L): 55.60 mm
Minimum Breaking Load (B.L.): 8,700 lbs (~3,946 kgf)

Applications: Mooring and rigging on vessels, offshore and port operations,
lifting heavy equipment, safe fastening in nautical and industrial systems.

Benefits:
High strength: Designed for heavy-duty loads
Durability: Excellent resistance in marine and corrosive environments
Safety: Equipped with nut and cotter pin for secure locking
Versatility: Suitable for marine, offshore, and industrial use

Technical Specifications:
Model: HL0110
Material: Stainless Steel AISI 316
Diameter: 12.7 mm (1/2″)
Dimensions: B = 20.60 mm | R = 33 mm | L = 55.60 mm
Minimum breaking load: 8,700 lbs (~3,946 kgf)
Components: Body, pin, nut, cotter pin
